Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

  • 1
  • 2
  • 3

Brand Name : Hwashi

Model Number : WL-FS

Certification : CE,CCC,ISO

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Hwashi Shock Absorber Automatic Seam Welding Machine

Condition : New

Abrasive Belt Width : 50mm

Welding Material : Carbon Steel/Stainless Steel

Weight : 300kg

Control System : PLC

Welding Width : 5-20mm

Minimum Welding Thickness : 0.2mm

Voltage : 380V,2 Phase,50/60Hz

Machine Type : Resistance Welding Machine

Service Life : 8-10 years

Contact Now

Hwashi Auto Shock Absorber Automatic Welding Machine TIG Welding Machine
Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

Detailed Description
Automatic circular seam welding machine adopts argon arc welding machine as the welding power source. The stepping motor drives the welding gun to conduct constant speed movement. The moving speed and length is set through PLC; use pneumatic pressing plate to press to ensure the stability and consistency of welding; the action program of the whole machine is controlled by PLC; use the touch screen to input data.
Applicable area This machine is applicable to welding of iron, stainless steel and Shock absorber. The thickness of welding work piece could be range from 1mm to 3mm. The length of welding work piece could be customized.

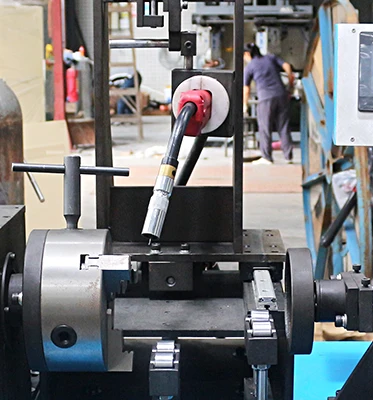

Features Mainly applied to welding of automobile connecting rod.Adopt the welding method of main spindle rotating.Use friction conductive technology. The work piece is fixed while the welding gun conducts automatic rotating. Maximum work piece length: 1000mm Maximum work piece outer diameter: 50mm Welding thickness.0.3-80mm Welding speed:0.2-6rpm
Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

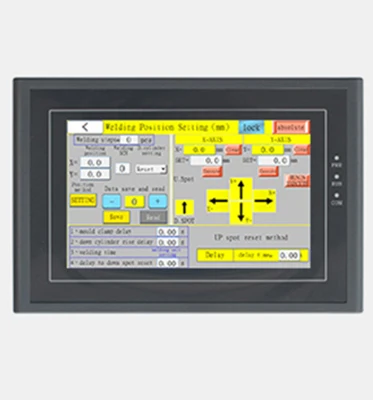

Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.
Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

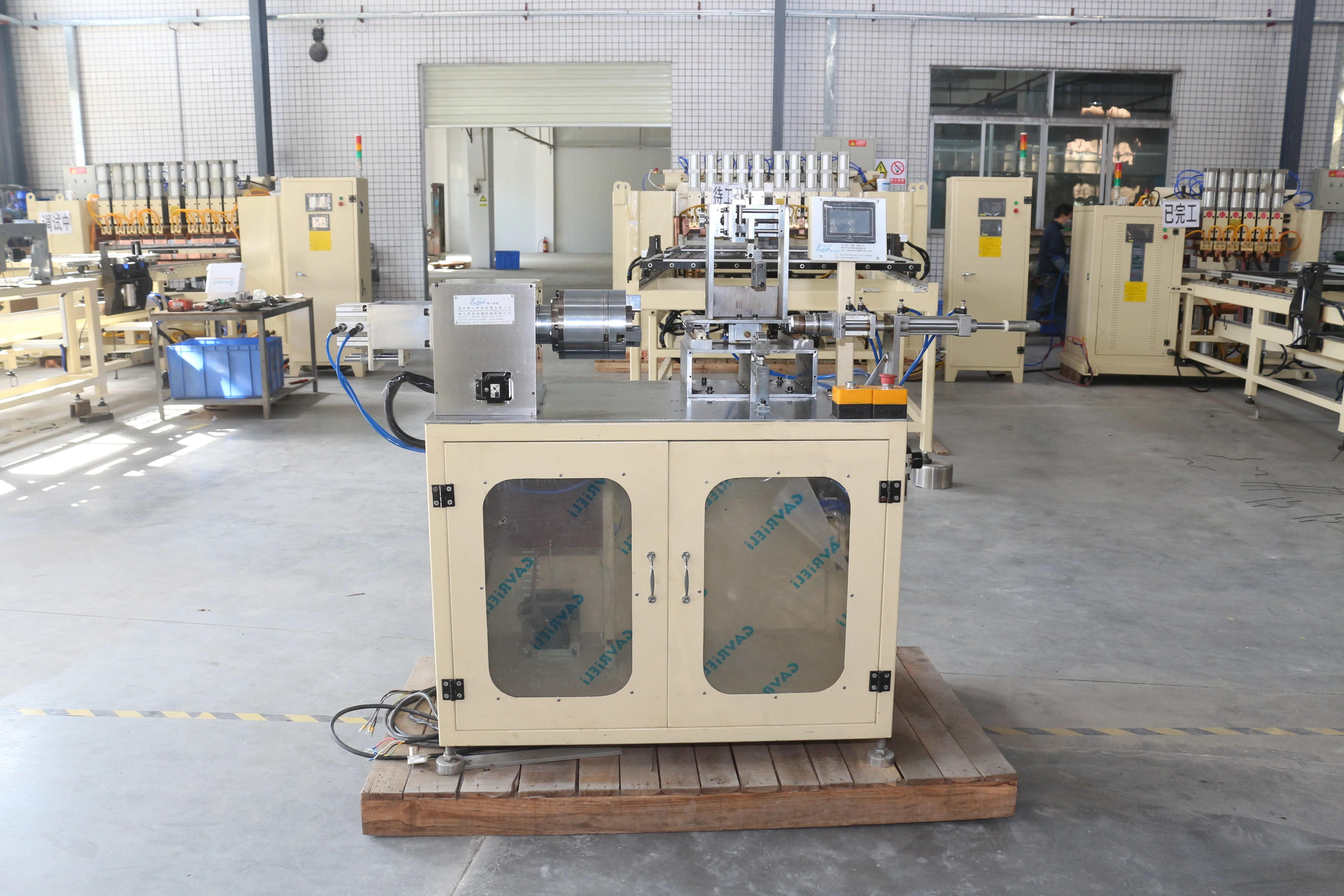

Product display
Products Show
Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

Welding Power Source
The work piece needs long arc welding and high requirement to the efficiency. Thus, pulse DC argon arc welding machine is adopted to meet the requirement of fast speed and stable welding.
Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

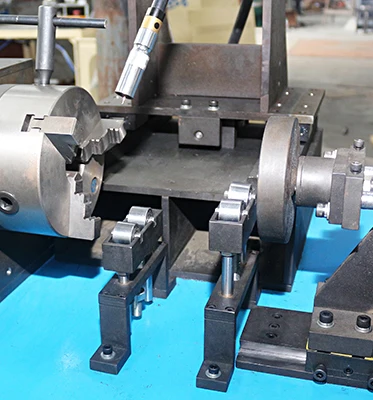

Jig Tool
Adopt machinery clamping locating device. Adopt embedded clamp to locate so as to meet the needs of welding different products.
No.
Items
Data
1
TIG Welder Number
2-3 (as per product drawing)
2
Welding Gun Moving Distance
18-120mm (as per product drawing)
3
Cylinder Types
3 (horizontal, vertical, upper clamping)
4
Feeding Conveyor Length
1200mm
5
Welding Speed
10mm/sec
