Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Name: Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided
Brand: HWASHI
Price: 1 USD

Buy cheap Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided product

Brand Name : HWASHI

Model Number : WL-C

Certification : CE/CCC/ISO

Place of Origin : CE/CCC/ISO

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Key Selling Points : Automatic

Applicable Industries : welding machine

Contact Now

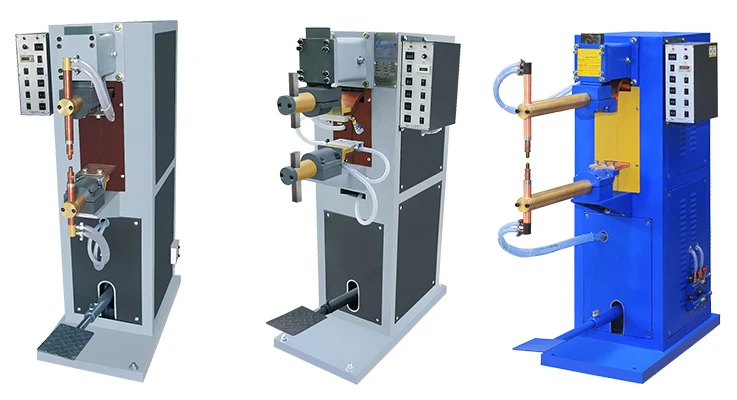

Foot Pedal Operated Spot Welding Machine

Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Foot pedal operated spot welding machine adopts lever pedal type spring pressurized structure. Easy operation, quick response. Suitable for various kind of positioning accuracy and complicated shape welding occasion. Under the operation of transformer, foot pedal spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generate high heat to make the work pieces in the molten condition. Thus, the purpose of welding the two pieces of work pieces is achieved.

Intelligent welding control system

Intelligent Touch Screen Controller

Input and read welding parameters.

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

1. Pedal lever control circuit. Main engine without electricity when do not step pedal. It can save electricity. 2. Using timing control. Even the work piece is still being pressed while welding, current can be automatically cut off on time and reduce the human factor. Easier operation. The quality of welding spot is more stable. 3. Timing using electronic controller stepless regulation. Setting range from 0. 0 2 to 2 seconds (usually the required time of work piece is within 0.5 seconds) accurately repeat the selection

Model	Input Voltage	Input Power	Output Current	Adjustable stroke	Electrode Distance	Cooling Water
Model	V	KVA	A	mm	mm	Lit/Min
WL-FT-25K	380	25	12000	30	100	6
WL-FT-35K	380	35	14000	30	100	6
WL-FT-50K	380	50	18000	30	100	6
